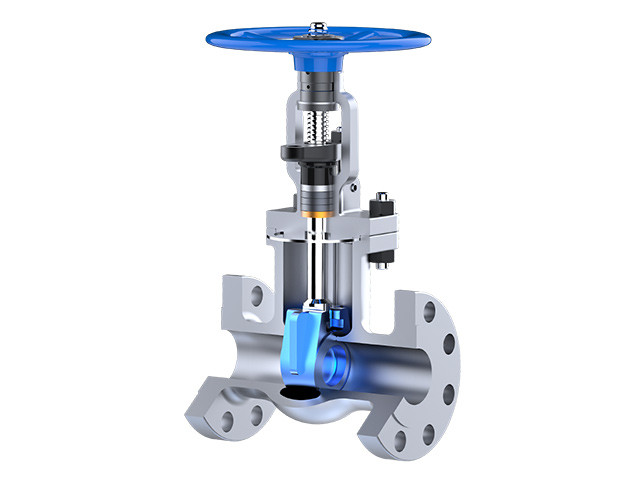

Cast Steel Gate Valve

Size: 2" ~ 60"(DN50 ~ DN1500)
Rating: ANSI 150lb ~ 2500lb(PN16~PN420)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Trim: Per API 600
Operation: Handwheel, Gearbox, Electric, Pneumatic, Hydraulic

Online Inquiry

Applicable Standard:
Design Standard: API 600, BS1414, DIN3352
Face to Face: ASME B16.10, EN 558, DIN3202
End Flange: ASME B16.5, ASME B16.47, DIN2533
BW Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Design Features:
● Choice of Solid orFlexible wedge
● Renewable or welded seat
● Extended stem design for low temperature
● End connection:RF, BW, RTJ
