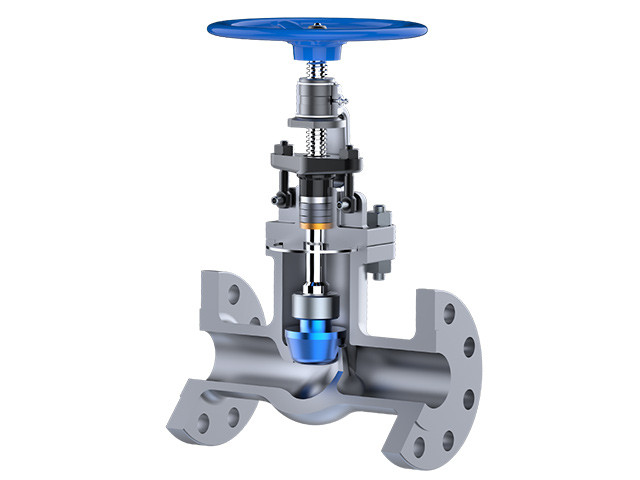

Casting Steel Globe Valve

Size: 2" ~ 24"(DN50 ~ DN600)
Rating: ANSI 150lb ~ 1500lb(PN16~PN420)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, DuplexStainlessSteel
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic

Online Inquiry

Applicable Standard:
Design Standard: BS 1873, ASME B16.34, DIN3356
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2501
BwEnds: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Design Features:
● Straight pattern body design
● OS&Y, outside screw and yoke
● Tapered, globe, or plug disc
● Renewable or welded seat
● Bolted bonnet, back seal structure
● Impact handwheel for 10" and above
● Extended stem design for low temperature
● ISO top flange for Bare stem globe valve
